大氣環境用ROBOT

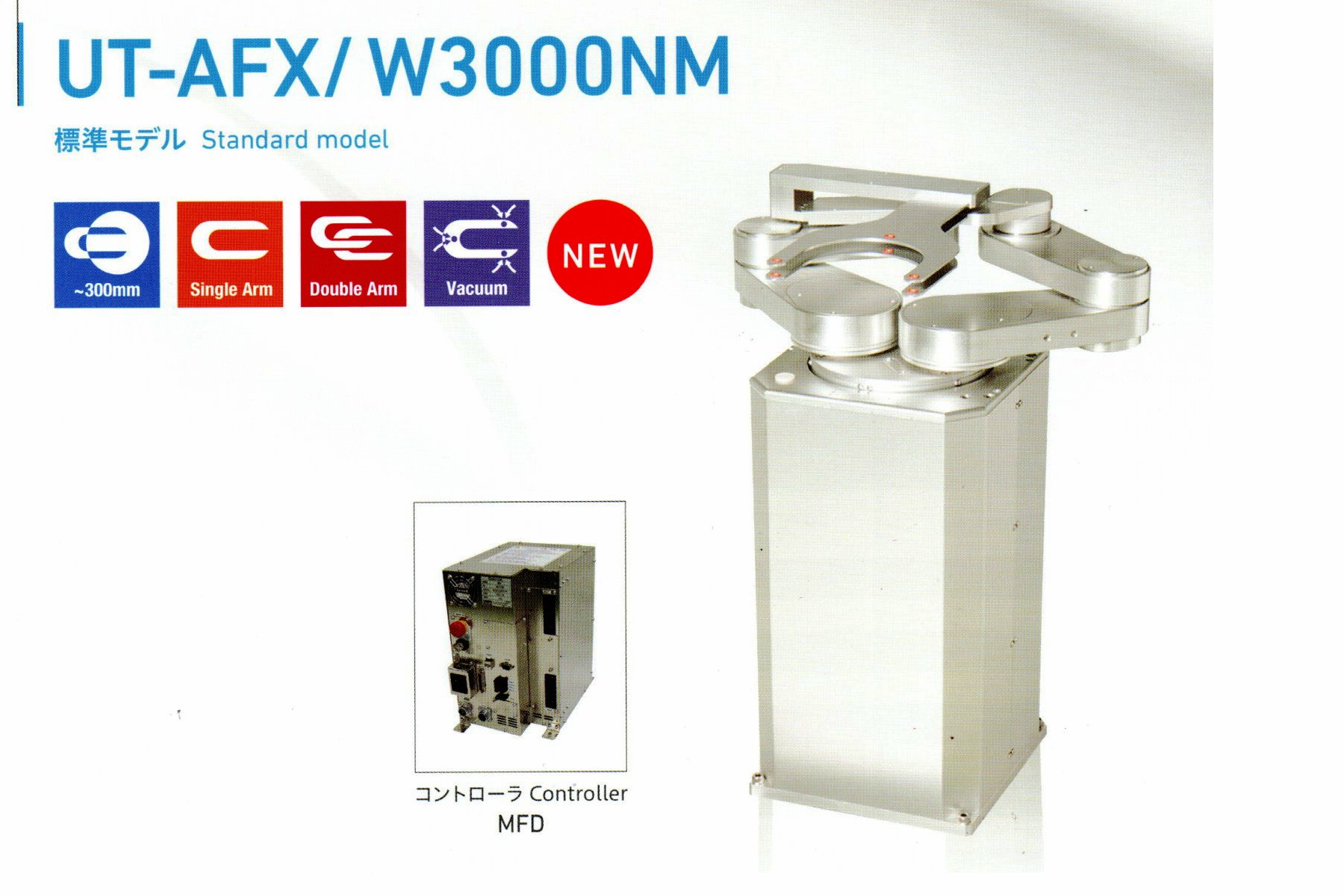

UT-AFX3000NM
特 長 Features

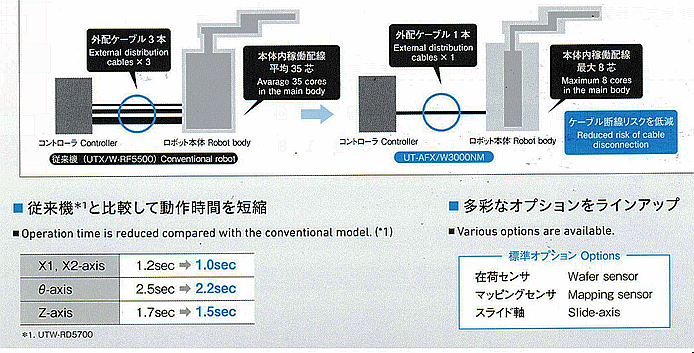

► 高速電力線通信技術を利用した配線設計により,従來機に比べロボット本体內及び外配ケーブルを
大幅に削減し信賴性を向上
► The use of high-speed powerline communications technology for the robot's internal and external distribution cables
significantly reduces wiring requirements compared with conventional robots.
仕樣 Specifications *1
| 型式 Model |
UT-AFX3000NM |
UT-AFW3000NM |
|||
|
ロボット形状 Robot Type |
3axis Cylindrical Coordinate |
4 axis Cylindrical Coordinate |
|||
|
動作範囲 |
X1, X2-axis |
500mm |
|||
|
θ-axis |
340° |
||||
|
Z-axis |
300mm or 450mm |
||||
|
最大動作速度 |
X1, X2-axis |
1000mm/sec |
|||
|
θ-axis |
200°/sec |
||||
|
Z-axis |
250mm/sec |
||||
|
動作時間 |
X1, X2-axis |
1.0sec. / 500mm |
|||
|
θ-axis |
2.2sec. / 340° |
||||
|
Z-axis |
1.5sec. / 300mm,2.1sec. / 450mm | ||||
|
繰返し位置精度 Repeatability |
XYZ direction: ±0.1mm each |
||||
|
可搬質量 Payload |
1.0kg/arm ( Including E/E) |
||||
|
クリーン度 Cleanliness |
ISO Class 1 (ISO-14644) |
||||
|
本体質量 Mass |
30kg |
32kg |
|||
|
必要諸源 Facilities |
真空(吸着用) Vacuum |
-80KPag or less, 10NL/min |
|||
|
真空(機內排気用)Vacuum (for purging) |
-80KPag or less, 10NL/min | ||||
|
設置環境 Environment |
温度 Temperature |
5-40℃ |
|||
|
湿度 Humidity |
20-70% No condensation |
||||
